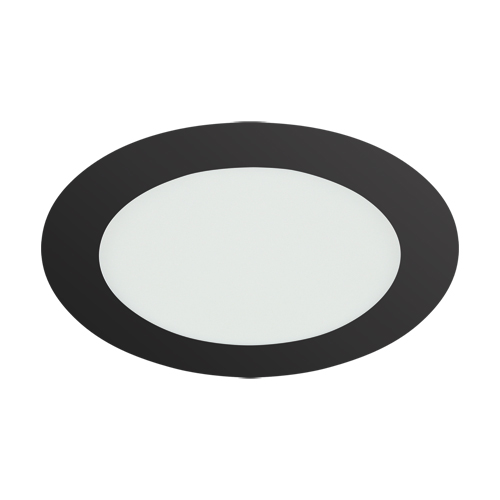

WAFEL LED C
18W BLACK CCT
Downlight LED fitting
• Product information
Colour
Black
Materials
Polycarbonate PC
Dimensions
height
26 mm
width
170 mm
Depth
170 mm
Mounting hole
⌀ 150 mm
Remarks
  • three-stage color temperature control (WW, NW, CW)
  • for instaling in increased-humidity locations, e.g. bathrooms

The WAFEL LED C 18W BLACK CCT is a modern LED downlight that combines elegant black design with functionality tailored to everyday needs. Its compact form and aesthetic finish make it perfect for both residential and commercial spaces, enhancing the character of the interior and providing comfortable lighting.

This model offers three-level light color adjustment –from warm white , through neutral white , to cool white –allowing you to tailor the light to the mood and function of the room. The 18W SMD LED source provides an efficient light output, while the wide 140° beam angle helps evenly illuminate the space. It's a great choice for modern interiors where both style and practicality are important.

The fixture was designed with comfortable and safe use in mind. Its IP54 protection rating makes it suitable not only for dry interiors but also for rooms with increased humidity, such as bathrooms . The robust plastic construction, Class II protection, and long-lasting light source life of up to 35,000 hours guarantee years of reliability.

  • Product type: LED downlight
  • Power: 18 W
  • Light color: warm white / neutral white / cool white
  • Color temperature: 2800K/4200K/6200K
  • Luminaire luminous flux: 1760 lm
  • Protection class: IP54
  • Product color: black
  • Mounting hole size: 150 mm
  • Application: dry interiors and rooms with increased humidity

The WAFEL LED C 18W BLACK CCT is the perfect solution for those looking for stylish, economical, and versatile LED lighting . It's perfect for spaces where aesthetics, comfort, and the ability to adapt light to current needs are key.

• Product parameters
Power supply
230V 50Hz
Power
18 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
1760 lm
Light source luminous flux
2450 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP54
Light colour:
warm white/neutral white/cold white
Colour temperature
2800K/4200K/6200K
Luminous beam angle
140°
Colour rendering index Ra
81
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04747
Brand
Multipack pcs
40
Catalogue page
24
EAN code
5901477347474
