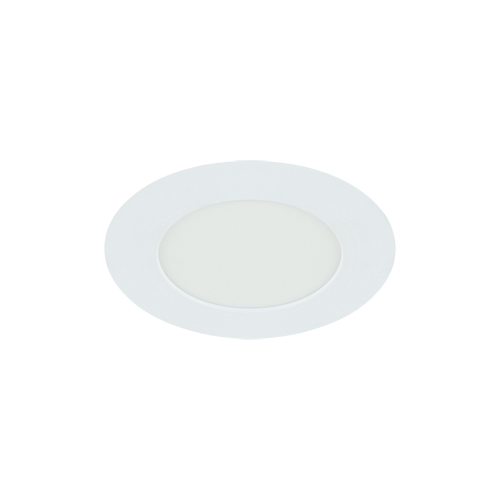

WAFEL LED C
5W WHITE CCT
Downlight LED fitting
• Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
26 mm
width
95 mm
Depth
95 mm
Mounting hole
⌀ 72 mm
Remarks
  • three-stage color temperature control (WW, NW, CW)
  • for instaling in increased-humidity locations, e.g. bathrooms

The WAFEL LED C 5W WHITE CCT is a modern LED downlight that combines elegant white design with high functionality. Its compact design makes it perfect for suspended ceilings, creating aesthetically pleasing and even lighting in homes, offices, and commercial spaces. It's a practical solution for those who value energy efficiency , comfort, and durability.

This model features three-level light color adjustment , allowing you to tailor the lighting to your needs and mood. You can choose from warm white , neutral white , or cool white light. The fixture provides a luminous flux of 450 lumens , a wide 140° beam angle, and a long-lasting light source of up to 35,000 hours .

It's a great choice for spaces where not only appearance but also reliability and safety are important. Its IP54 rating also makes the fixture suitable for rooms with high humidity, such as bathrooms. The built-in SMD LED source eliminates the need to replace the bulb, and the robust plastic construction ensures comfortable everyday use.

  • Product type: LED downlight
  • Power: 5 W
  • Light color: warm white / neutral white / cool white
  • Luminaire luminous flux: 450 lm
  • Protection class: IP54
  • Color temperature: 2900K / 4000K / 6200K
  • Material: plastic
  • Mounting hole: 72 mm
  • Power supply: 230V 50Hz

WAFEL LED C 5W WHITE CCT is a combination of style, functionality and energy savings - an ideal solution for modern interiors where comfort and refined lighting are important.

• Product parameters
Power supply
230V 50Hz
Power
5 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
450 lm
Light source luminous flux
590 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP54
Light colour:
warm white/neutral white/cold white
Colour temperature
2900K/4000K/6200K
Luminous beam angle
140°
Colour rendering index Ra
81
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04740
Brand
Multipack pcs
100
Catalogue page
24
EAN code
5901477347405
