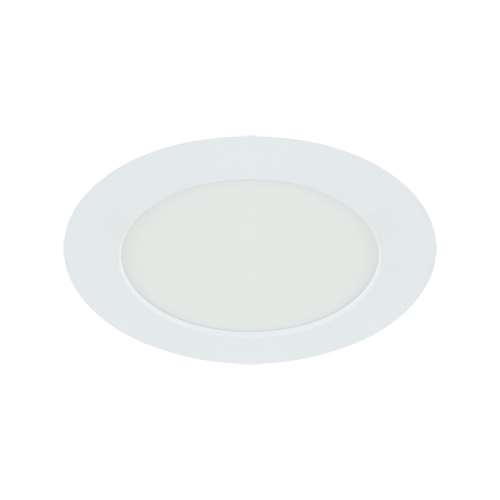

WAFEL LED C
12W WHITE CCT
Downlight LED fitting
• Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
26 mm
width
145 mm
Depth
145 mm
Mounting hole
⌀ 120 mm
Remarks
  • three-stage color temperature control (WW, NW, CW)
  • for instaling in increased-humidity locations, e.g. bathrooms

The WAFEL LED C 12W WHITE CCT is a modern LED downlight that combines elegant, minimalist design with the convenience of everyday use. With a power output of 12W and a luminous flux of 1100 lm , it provides pleasant and efficient lighting, ideal for both home and commercial interiors. The white housing allows the model to blend discreetly into the ceiling, creating an aesthetically pleasing and cohesive finish.

The biggest advantage of this model is the three-stage color temperature adjustment – ––you can choose warm white , neutral white , or cool white light depending on your needs and the character of the room. This fixture is perfect for living rooms, kitchens, hallways, and high-humidity spaces like bathrooms . A high IP54 rating increases safety and comfort, while a durable LED light source with a 35,000-hour lifespan guarantees long, trouble-free operation.

The WAFEL LED C 12W WHITE CCT is a practical choice for modern interiors where functionality, energy savings, and aesthetics are paramount. The fixture is made of durable plastic , and its wide 140° beam angle allows for even illumination of the interior.

  • Product type: LED downlight
  • Power: 12 W
  • Light color: warm / neutral / cold
  • Color temperature: 2800K / 4200K / 6200K
  • Luminous flux of the fixture: 1100 lm
  • Protection class: IP54
  • Light source lifetime: 35,000 h
  • Product color: white
  • Material: plastic
  • Light beam angle: 140°
  • Mounting hole: 120 mm

This is the perfect solution for those looking for modern LED lighting with high functionality, aesthetic appeal, and the ability to adjust the light color to suit any situation. Choose the WAFEL LED C 12W WHITE CCT and enjoy comfortable light every day.

• Product parameters
Power supply
230V 50Hz
Power
12 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
1100 lm
Light source luminous flux
1610 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP54
Light colour:
warm white/neutral white/cold white
Colour temperature
2800K/4200K/6200K
Luminous beam angle
140°
Colour rendering index Ra
81
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04744
Brand
Multipack pcs
60
Catalogue page
24
EAN code
5901477347443
