WAFEL LED C
12W BLACK CCT
Downlight LED fitting
• Product information
Colour
Black
Materials
Polycarbonate PC
Dimensions
height
26 mm
width
145 mm
Depth
145 mm
Mounting hole
⌀ 120 mm
Remarks
  • three-stage color temperature control (WW, NW, CW)
  • for instaling in increased-humidity locations, e.g. bathrooms

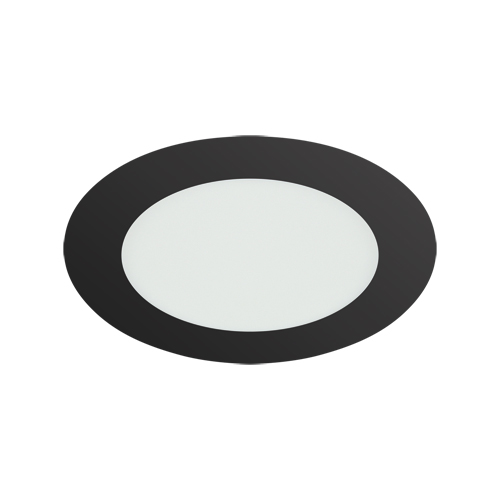

The WAFEL LED C 12W BLACK CCT is a modern LED downlight that combines elegant design with high functionality. Its sleek, black housing blends seamlessly with modern interiors, and its universal design makes it a great addition to both home and commercial spaces. It's a practical solution for those who expect reliable lighting and an aesthetically pleasing finish.

This model offers 12W of power and a luminous flux of 1010 lm , ensuring comfortable, even lighting. With three-stage color temperature adjustment, you can adjust the light to your needs and mood: warm white 2800K , neutral white 4200K , or cool white 6200K . The wide 140° beam angle allows for a pleasant light distribution, ideal for everyday use.

The fixture was designed with durability and ease of installation in mind. With an IP54 rating, it's also ideal for rooms with high humidity, such as bathrooms. The built-in SMD LED light source guarantees a long lifespan of up to 35,000 hours , while a high CRI 81 color rendering index supports natural color reproduction. The product is designed for installation in a 120mm cutout and is made of lightweight, durable plastic.

  • Product type: LED downlight
  • Power: 12 W
  • Housing color: black
  • Light color: 2800K / 4200K / 6200K
  • Luminous flux of the fixture: 1010 lm
  • Protection class: IP54
  • Lifespan: 35,000 h
  • Mounting hole: 120 mm
  • Application: dry and damp interiors, e.g. bathrooms

The WAFEL LED C 12W BLACK CCT is a great choice if you're looking for lighting that combines style, energy savings, and versatility . Choose a proven solution that will adapt to your space and provide comfortable light every day.

• Product parameters
Power supply
230V 50Hz
Power
12 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
1010 lm
Light source luminous flux
1610 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP54
Light colour:
warm white/neutral white/cold white
Colour temperature
2800K/4200K/6200K
Luminous beam angle
140°
Colour rendering index Ra
81
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04745
Brand
Multipack pcs
60
Catalogue page
24
EAN code
5901477347450
