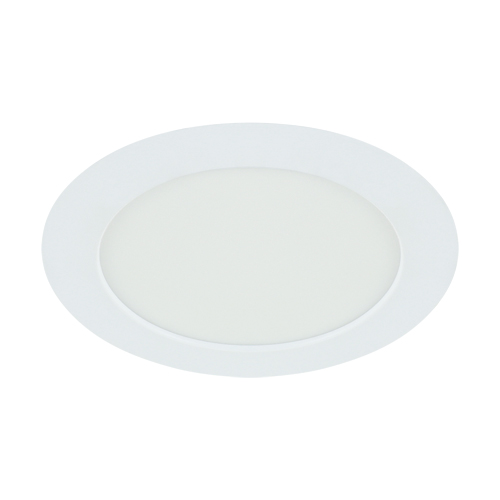

WAFEL LED C
18W WHITE CCT
Downlight LED fitting
• Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
26 mm
width
170 mm
Depth
170 mm
Mounting hole
⌀ 150 mm
Remarks
  • three-stage color temperature control (WW, NW, CW)
  • for instaling in increased-humidity locations, e.g. bathrooms

The WAFEL LED C 18W WHITE CCT is a modern LED downlight that combines elegant, universal design with high functionality. Its subtle white housing blends seamlessly into any interior, and its slim form makes it a great addition to both home and commercial settings. It's a practical solution for those seeking aesthetically pleasing and reliable lighting for everyday use.

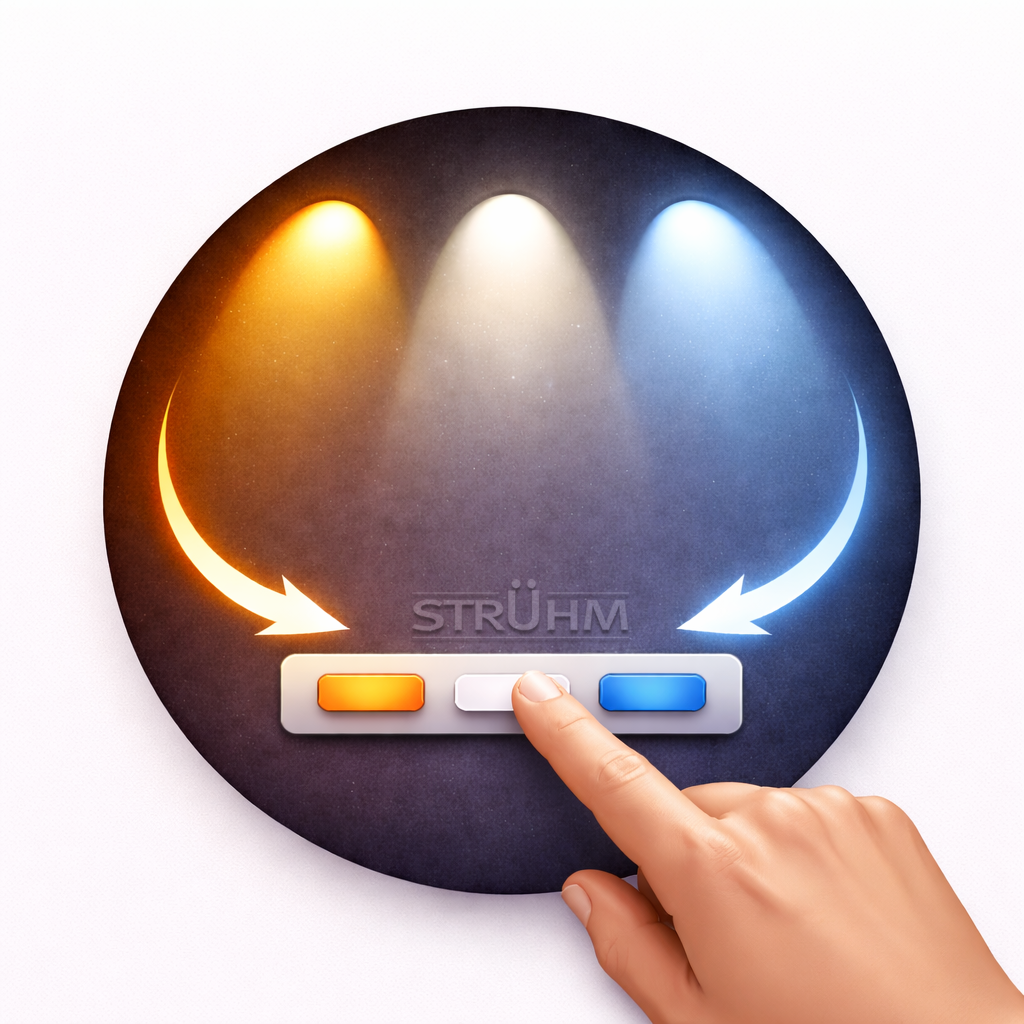

With a power of 18W and a luminous flux of 1840 lm , the product provides pleasant and even lighting. The SMD LED source guarantees a long lifespan of up to 35,000 hours and energy-efficient operation. Importantly, the fixture offers three-stage color temperature adjustment – ––2800K , 4200K , and 6200K – allowing you to easily adjust the light to suit the mood and character of the room.

The WAFEL LED C is ideal for a variety of applications, especially where comfort and resistance to environmental conditions are key. Its IP54 rating also allows for installation in humid environments, such as bathrooms, while its high-quality plastic construction ensures durability and a long-lasting aesthetic. The model is designed for installation in a 150mm cutout, making it easy to fit into many standard installations.

  • Power: 18 W
  • Light color: warm white / neutral white / cool white
  • Color temperature: 2800K / 4200K / 6200K
  • Luminaire luminous flux: 1840 lm
  • Protection class: IP54
  • Light source durability: 35,000 h
  • Product color: white
  • Product type: LED downlight

It's an excellent choice if you're looking for lighting that combines a modern look , high efficiency , and comfort of use . The WAFEL LED C 18W WHITE CCT is a practical fixture that will help create a welcoming, well-lit space in your home, office, or commercial space.

• Product parameters
Power supply
230V 50Hz
Power
18 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
1840 lm
Light source luminous flux
2450 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP54
Light colour:
warm white/neutral white/cold white
Colour temperature
2800K/4200K/6200K
Luminous beam angle
140°
Colour rendering index Ra
81
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04746
Brand
Multipack pcs
40
Catalogue page
24
EAN code
5901477347467
