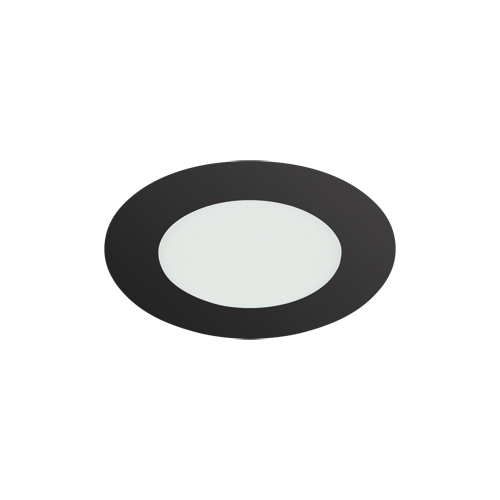

WAFEL LED C
5W BLACK CCT
Downlight LED fitting
• Product information
Colour
Black
Materials
Polycarbonate PC
Dimensions
height
26 mm
width
95 mm
Depth
95 mm
Mounting hole
⌀ 72 mm
Remarks
  • three-stage color temperature control (WW, NW, CW)
  • for instaling in increased-humidity locations, e.g. bathrooms

The WAFEL LED C 5W BLACK CCT is a modern LED downlight that combines elegant design with functionality ideal for everyday use. Its sleek, black housing blends seamlessly with modern interiors, while its compact form makes it a perfect addition to both homes and commercial spaces. It's a practical solution for those seeking aesthetically pleasing and energy-efficient lighting.

With a power of 5 W and a luminous flux of 400 lm , the product provides pleasant and comfortable lighting for everyday use. SMD LED technology guarantees a long lifespan of up to 35,000 hours , and a 140° beam angle allows for even illumination of the selected space. The fixture does not require replacing the light source, which increases user convenience.

This model offers three-stage color temperature adjustment , allowing you to tailor the lighting to your needs with a single product. You can choose from:

  • 2900 K - warm white light color, ideal for creating a cozy atmosphere,
  • 4000 K - neutral white, perfect for everyday use,
  • 6200 K - cold white color, favoring expressive lighting.

The WAFEL LED C 5W BLACK CCT has an IP54 rating , making it suitable for both dry interiors and high-humidity areas, such as bathrooms . Its plastic construction ensures durability and reliability. It's an excellent choice for those who value style, comfort, and functionality all in one.

• Product parameters
Power supply
230V 50Hz
Power
5 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
400 lm
Light source luminous flux
590 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP54
Light colour:
warm white/neutral white/cold white
Colour temperature
2900K/4000K/6200K
Luminous beam angle
140°
Colour rendering index Ra
81
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04741
Brand
Multipack pcs
100
Catalogue page
24
EAN code
5901477347412
