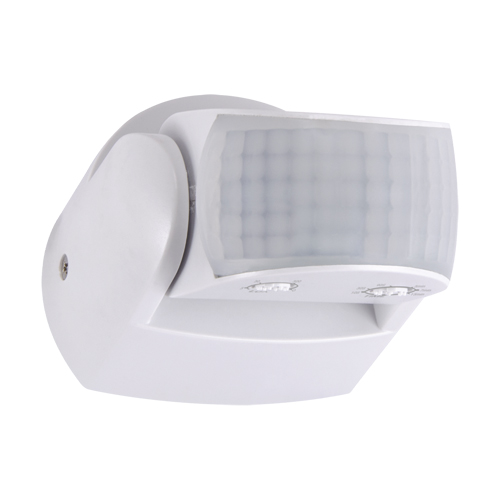

PATROL PIR
180 WHITE
Motion sensor
• Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
64 mm
width
76 mm
Depth
93 mm
Remarks
  • possibility of setting ambient lighting intensity (3-2000 lx) at which the device operates
  • movement sensor operating angle 180°
  • motion detection range < 12 m (< 24°C)
  • lighting time regulation between 10 s and 15 min

The PATROL PIR 180 WHITE is a modern motion sensor that provides convenience, safety, and energy savings in everyday use. With a 180° operating angle and a motion detection range of up to 12 meters, the device is ideal for a variety of applications, both indoors and outdoors.

This model stands out for its high functionality and precision. It allows you to adjust the light intensity from 3-2000 lx , as well as the burn time from 10 seconds to 15 minutes , allowing you to tailor the device to your individual needs. The robust white polycarbonate PC housing and IP65 protection rating ensure durability and resistance in demanding conditions.

The PATROL PIR 180 WHITE is a practical solution for those seeking a reliable and aesthetically pleasing motion sensor. The device operates on a 230V 50Hz power supply and supports loads up to 1200W , making it a universal choice for many installations. Choose proven quality and everyday comfort.

  • Product type: motion sensor
  • Operating angle: 180°
  • Detection range: up to 12 m
  • Light intensity adjustment: 3-2000 lx
  • Lighting time adjustment: 10 s - 15 min
  • Protection class: IP65
  • Material: PC polycarbonate
  • Color: white
  • Maximum power: 1200 W
• Product parameters
Power supply
230V 50Hz
Power
max 1200 W
Degree of protection provided against intrusion dust, accidental contact and water
IP65
For indoor or outdoor use
Electric shock protection class
2
Declaration of conformity
Product code
03922
Brand
Multipack pcs
50
Catalogue page
430
EAN code
5901477339226
