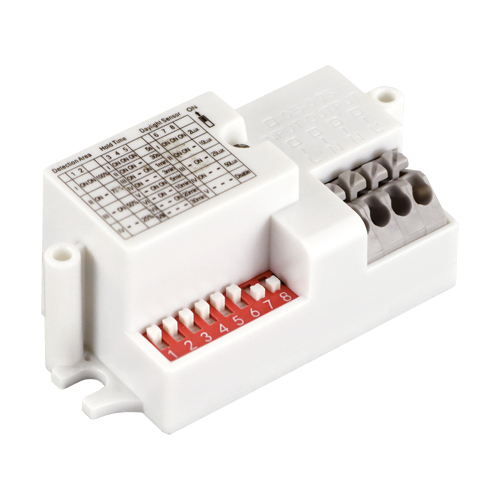

NEO MVS
DIP WHITE
Microwave motion sensor
• Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
23 mm
width
61 mm
Depth
29 mm
Remarks
  • switching on with ambient light < 10 lx, 20 lx, 75 lx, 200 lx, OFF
  • movement sensor operating angle 150°/360°
  • motion detection range < 1 m, 2 m, 3 m, 4 m
  • switching off after < 5 s, 30 s, 1 min, 3 min, 5 min, 10 min, 20 min, 30 min
  • operating frequency 5,8 GHz ± 75 MHz
  • transmitter power 1,2 mW MAX

The NEO MVS DIP WHITE is a compact microwave motion sensor designed for automatic lighting control in rooms. Using microwave technology, it detects motion regardless of the ambient temperature, enabling automatic switching of lighting fixtures. Its small size allows for discreet installation in a variety of locations, and its maximum load of 400W means the sensor can be used with a wide range of light sources.

This model is equipped with DIP switches that allow for precise configuration of operating parameters without the use of potentiometers. Users can set the light intensity threshold at which the sensor will activate, the motion detection range, and the time it will remain on after motion stops. A detection angle of 150°/360 ° and adjustable range of up to 4 meters allow the device to be tailored to the room's character and usage.

The polycarbonate PC housing ensures durability and aesthetic appeal, while its IP20 protection rating makes the device suitable for indoor use. The NEO MVS DIP WHITE is a practical solution for lighting automation in hallways, utility rooms, offices, garages, and stairwells, increasing user comfort and helping reduce energy consumption.

Technical data:

  • Product type: microwave motion sensor
  • Power supply: 230 V AC, 50 Hz
  • Maximum load: 400 W
  • Detection technology: microwave
  • Operating frequency: 5.8 GHz – 75 MHz
  • Transmitter power: max. 1.2 mW
  • Detection angle: 150°/360°
  • Adjustable detection range: 1 m / 2 m / 3 m / 4 m
  • Adjustable illuminance threshold: <10 lx / 20 lx / 75 lx / 200 lx / OFF
  • Adjustable hold time: 5s / 30s / 1min / 3min / 5min / 10min / 20min / 30min
  • Degree of protection: IP20
  • Protection class: II
  • Material: polycarbonate (PC)
• Product parameters
Power supply
230V 50Hz
Power
max 400 W
Degree of protection provided against intrusion dust, accidental contact and water
IP20
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04179
Brand
Multipack pcs
100
Catalogue page
432
EAN code
5901477341793
