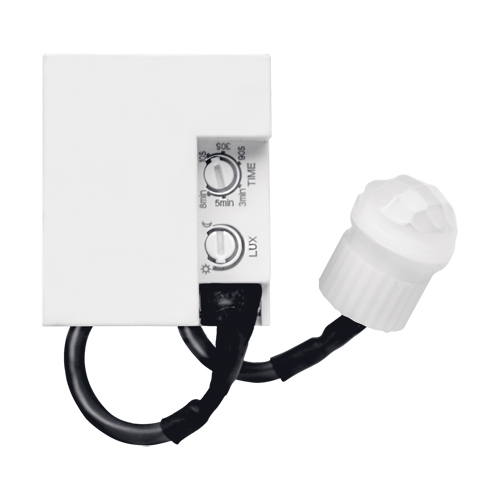

PIXI PIR
WHITE
Motion sensor
Product code
03695
EAN code
5901477336959
Brand
Multipack pcs
100
Catalogue page
408
Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
56 mm
width
26 mm
Depth
37 mm
Remarks
  • possibility of setting ambient lighting intensity (3-2000 lx) at which the device operates
  • movement sensor operating angle 120°/360°
  • motion detection range < 6 m (< 24°C)
  • lighting time regulation between 10 s and 8 min
Downloadable materials
Product information sheet
EU declaration of conformity
Product manual
Description of symbols and markings
Power supply
230V 50Hz
Power
max 800 W
Degree of protection provided against intrusion dust, accidental contact and water
IP65/20
For indoor or outdoor use
Electric shock protection class
2
Declaration of conformity
