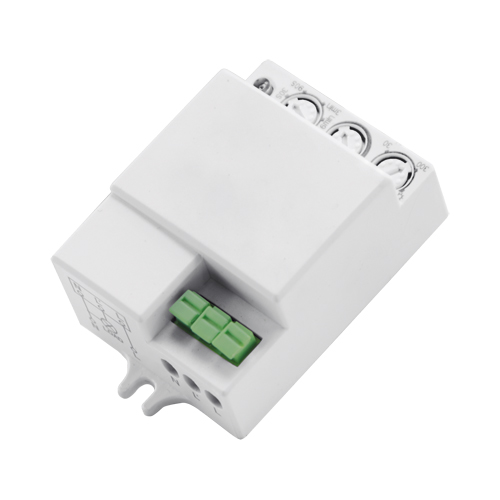

NEO MVS
SMALL WHITE
Microwave motion sensor
Product code
03698
EAN code
5901477336980
Brand
Multipack pcs
100
Catalogue page
335
Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
40 mm
width
55 mm
Depth
25 mm
Remarks
  • possibility of setting ambient lighting intensity (3-2000 lx) at which the device operates
  • movement sensor operating angle 180°/360°
  • motion detection range < 8 m
  • lighting time regulation between 10 s and 12 min
  • operating frequency 5,8 GHz
  • transmitter power 1,2 mW MAX
Downloadable materials
Power supply
230V 50Hz
Power
max 1200 W
Degree of protection provided against intrusion, dust, accidental contact, and water
IP20
For indoor use
Electric shock protection class
2
Declaration of conformity
