AGENT PIR
WHITE
Motion sensor
• Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
58 mm
width
115 mm
Depth
115 mm
Remarks
  • possibility of setting ambient lighting intensity (3-2000 lx) at which the device operates
  • movement sensor operating angle 360°
  • motion detection range < 6 m (< 24°C)
  • lighting time regulation between 10 s and 7 min

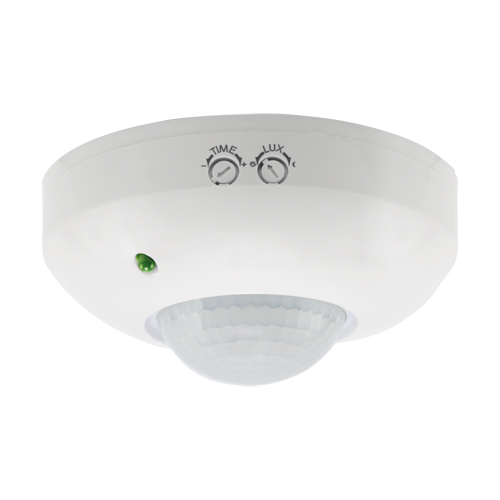

AGENT PIR WHITE is a modern motion sensor that provides comfort, safety, and energy savings in everyday use. Its white, durable polycarbonate PC housing blends seamlessly with a variety of interiors, maintaining an aesthetically pleasing and discreet appearance.

The device operates on a 230V 50Hz power supply and supports loads up to 1200W , making it a practical solution for many home and commercial applications. The sensor offers a 360° operating angle and a motion detection range of up to 6m. You can also precisely adjust its operation by adjusting the ambient light intensity from 3-2000 lx and adjusting the lighting time from 10 seconds to 7 minutes .

AGENT PIR WHITE is an excellent choice for those who value reliability and ease of use. Its IP20 rating and Class II protection emphasize its intended use in indoor applications.

  • Product type: motion sensor
  • Model: AGENT PIR WHITE
  • Color: white
  • Power supply: 230V 50Hz
  • Maximum power: 1200 W
  • Operating angle: 360°
  • Detection range: less than 6 m
  • Lighting time adjustment: 10 s - 7 min
  • Light intensity adjustment: 3-2000 lx

Choose AGENT PIR WHITE and choose a solution that combines functionality , aesthetics , and comfort of use . It's a practical piece of equipment that helps you automatically control your lighting and increases everyday convenience.

• Product parameters
Power supply
230V 50Hz
Power
max 1200 W
Degree of protection provided against intrusion dust, accidental contact and water
IP20
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
03697
Brand
Multipack pcs
50
Catalogue page
429
EAN code
5901477336973
