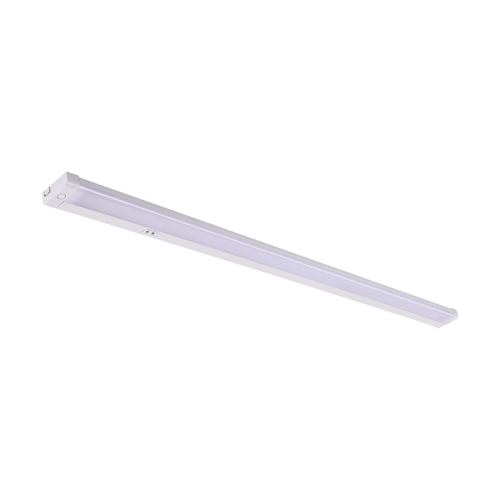

ALAN LED
8W NW
Under-cupboard linear LED fitting
• Product information
Colour
Light grey
Materials
Polycarbonate PC
Dimensions
height
12 mm
width
600 mm
Depth
33 mm
Remarks
  • variable brightness regulation
  • touch-free switch
  • on/off via hand motion

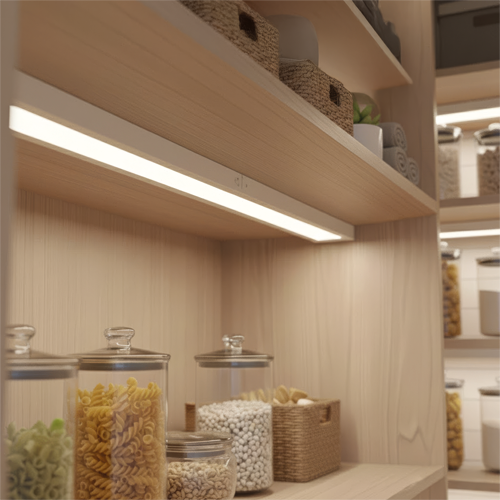

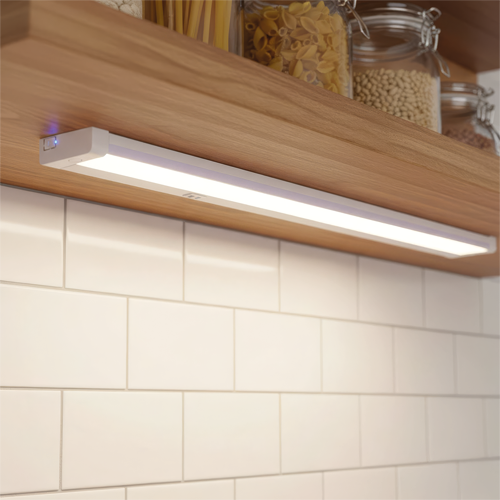

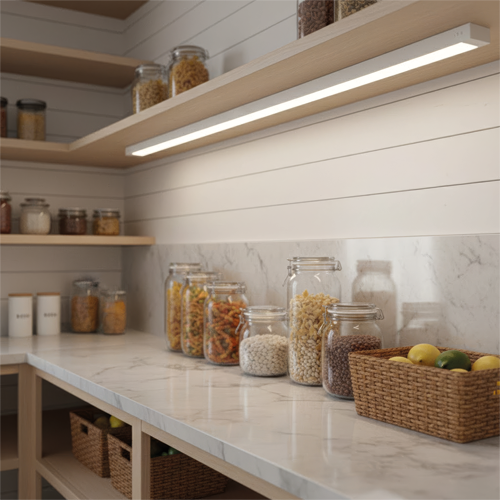

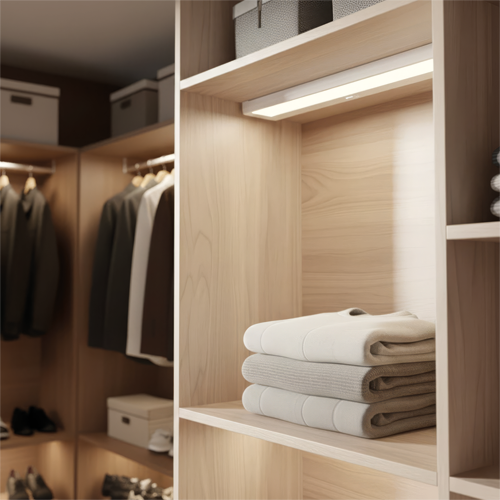

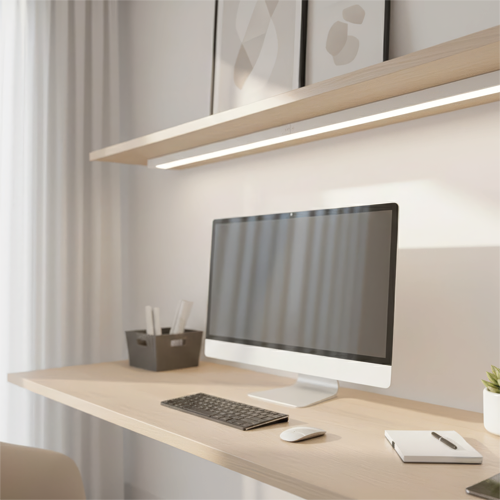

The ALAN LED 8W NW is a modern, under-cabinet linear LED fixture that's perfect for use in kitchens, walk-in closets, workshops, or above worktops. Its sleek form, light gray color , and minimalist design allow it to blend discreetly into its surroundings while providing powerful, pleasant lighting where you need it most.

This model is equipped with an energy-efficient 8W SMD LED light source , generating 780 lumens of light and emitting a neutral white color of 4000K . This color temperature promotes comfortable work and everyday activities, while the 140° beam angle guarantees wide, even illumination of the space. Additionally, a high color rendering index of 82 helps preserve the natural appearance of illuminated objects.

This fixture was designed with ease of use and simple installation in mind. Thanks to the touchless switch and smooth brightness adjustment, you can easily adjust the light intensity to your needs. Its durable plastic construction, 230V 50Hz power supply, and long light source life of up to 35,000 hours make this model a practical choice for years to come.

  • Product type: under-cabinet linear LED fixture
  • Power: 8 W
  • Light color: neutral white
  • Color temperature: 4000 K
  • Luminaire luminous flux: 780 lm
  • Switching on: touchless, with a hand movement
  • Brightness adjustment: yes, smooth
  • Degree of protection: IP20
  • Light source durability: 35,000 h
  • Product color: light gray

The ALAN LED 8W NW is a great choice for those looking for functional, aesthetic, and modern interior lighting. Choose comfort, energy savings, and elegant design in one product.

• Product parameters
Power supply
230V 50Hz
Power
8 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
780 lm
Light source luminous flux
1140 lm
Shelf life L70B50 in h
35 000 h
on/off switch
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP20
Light colour:
neutral white
Colour temperature
4000 K
Luminous beam angle
140°
Colour rendering index Ra
82
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04876
Brand
Multipack pcs
50
Catalogue page
243
EAN code
5901477348761
