ALAN LED
4W NW

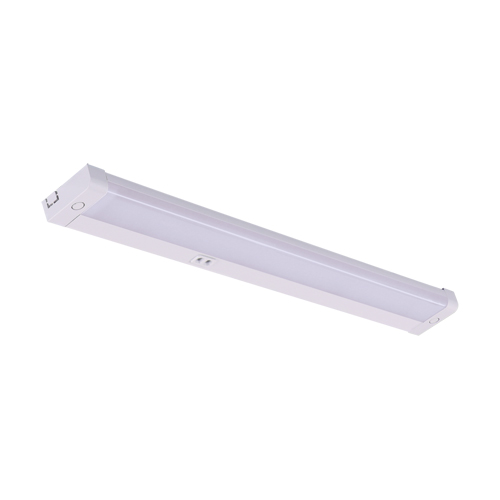

Under-cupboard linear LED fitting
• Product information
Colour
Light grey
Materials
Polycarbonate PC
Dimensions
height
12 mm
width
300 mm
Depth
33 mm
Remarks
  • variable brightness regulation
  • touch-free switch
  • on/off via hand motion

The ALAN LED 4W NW is a modern, under-cabinet linear LED fixture that's perfect for kitchens, closets, workshops, or anywhere you need additional, convenient lighting. Its sleek design and light gray color allow the fixture to blend discreetly into its surroundings, while providing practical and aesthetically pleasing illumination for any space.

This model offers a neutral white light color of 4000K , which promotes comfortable everyday use and provides a natural reflection of the surroundings. With a luminous flux of 310 lm and a wide 140° beam angle , the light is distributed evenly, and the integrated SMD LED source ensures long-lasting and energy-efficient operation. An additional advantage is the smooth brightness adjustment and a touchless switch that allows for convenient turning on and off with a simple wave of the hand.

This solution was created with comfort and functionality in mind. ALAN LED 4W NW is distinguished by its simple installation, reliability, and high light source durability of up to 35,000 hours . Thanks to its compact dimensions, it is perfect for mounting under cabinets and in places where every centimeter of space counts.

  • Power: 4 W
  • Light color: neutral white
  • Color temperature: 4000 K
  • Luminaire luminous flux: 310 lm
  • Touchless switch: yes
  • Smooth brightness adjustment: yes
  • Degree of protection: IP20
  • Light source durability: 35,000 h

If you are looking for a compact luminaire that combines practicality , modern design and ease of use , ALAN LED 4W NW will be an excellent choice for everyday use.

• Product parameters
Power supply
230V 50Hz
Power
4 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
310 lm
Light source luminous flux
530 lm
Shelf life L70B50 in h
35 000 h
on/off switch
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP20
Light colour:
neutral white
Colour temperature
4000 K
Luminous beam angle
140°
Colour rendering index Ra
82
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04875
Brand
Multipack pcs
50
Catalogue page
243
EAN code
5901477348754
