WEKTOR LED D PIR
1,2W WHITE CCT

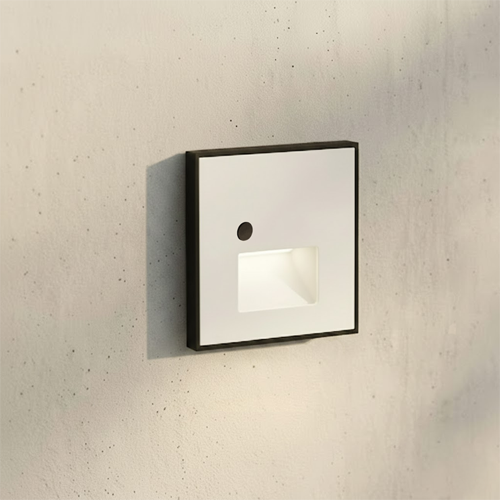

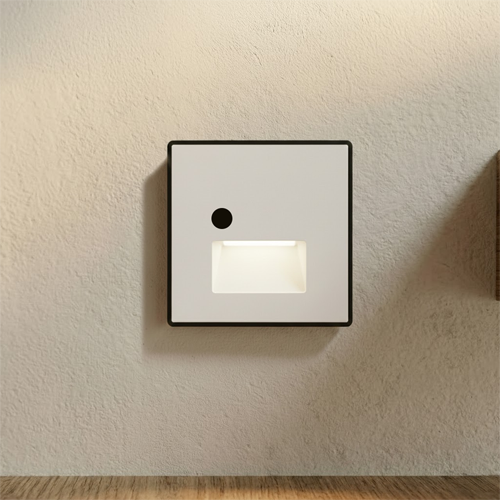

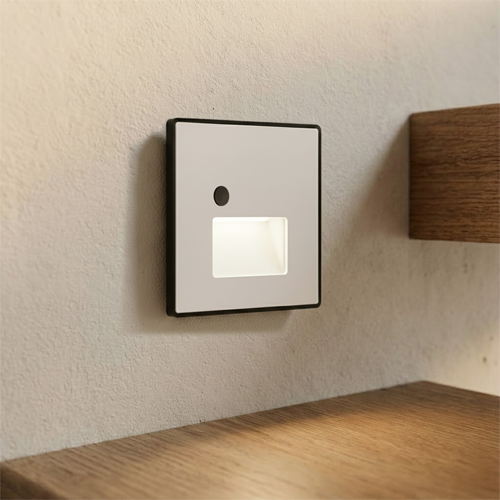

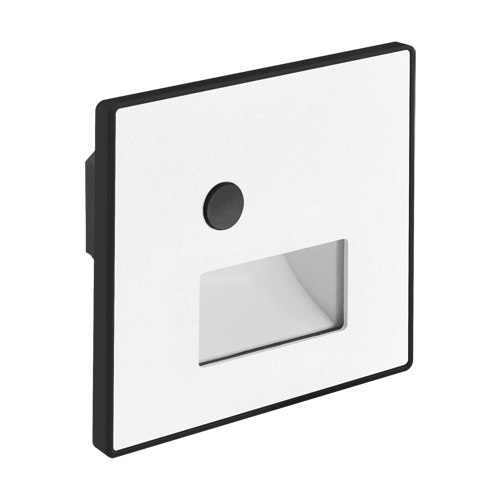

Decorative LED fitting with a motion sensor
• Product information
Colour
White/black
Materials
Steel, polycarbonate PC, PMMA
Dimensions
height
80 mm
width
80 mm
Depth
40 mm
Mounting hole
⌀ 60 mm
Remarks
  • three-stage color temperature control (WW, NW, CW)
  • with PIR movement sensor
  • movement sensor operating angle 120°
  • works with ambient light < 30 lx
  • motion detection range < 2 m (< 24°C)
  • lighting time 30 s

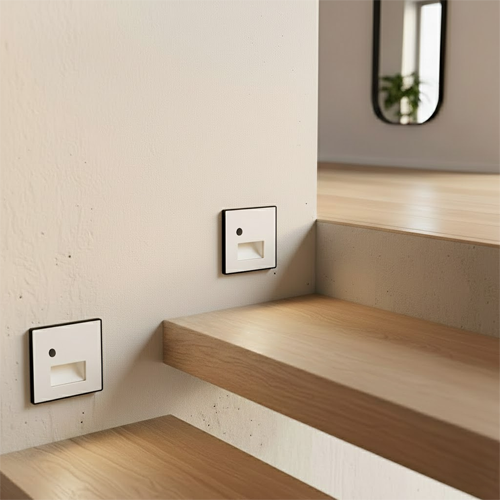

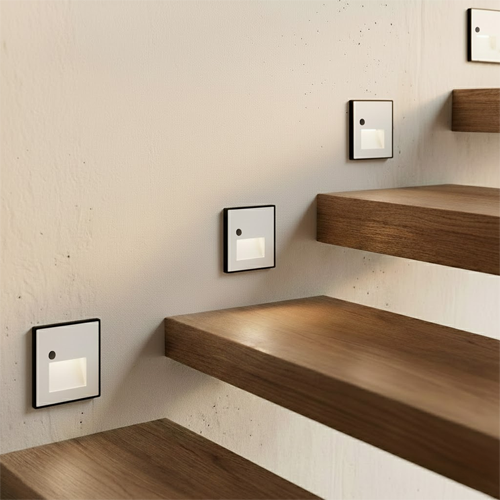

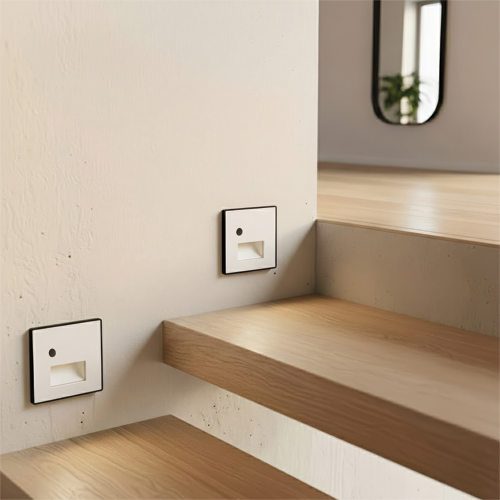

The WEKTOR LED D PIR 1.2W WHITE CCT is a modern decorative LED luminaire with a motion sensor that combines energy savings, functionality, and aesthetic appeal. Its compact design and white color make it perfect for practical lighting in the home, hallway, stairs, closet, wardrobe, or other areas requiring discreet, automatic lighting.

The fixture offers three-level light color adjustment – ––you can choose from warm white, neutral white, or cool white, adapting the lighting to your interior and preferences. A built-in PIR motion sensor activates the light automatically, increasing convenience and helping reduce energy consumption. It's an ideal solution where comfort and safety are key.

This model stands out for its solid construction and easy installation, and its small size makes it easy to fit into many arrangements. Thanks to LED technology, the fixture ensures long life and stable, pleasant light.

  • 1.2 W power and energy-saving LED technology
  • PIR motion sensor with an operating angle of 120°
  • 3 light colors : 3000K / 4000K / 6000K
  • Luminous flux of the fixture 50 lm
  • Lighting time 30 s
  • Operation in ambient light < 30 lx
  • Motion detection range up to 2 m
  • Light source lifespan 35,000 h
  • Aesthetic housing made of sheet steel and plastic
  • Mounting hole 60 mm

The WEKTOR LED D PIR is an excellent choice for those seeking practical, elegant, and modern lighting with automatic control. Choose comfort, functionality, and style in one compact product.

• Product parameters
Power supply
230V 50Hz
Power
1,2 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
50 lm
Light source luminous flux
58 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP20
Light colour:
warm white/neutral white/cold white
Colour temperature
3000K/4000K/6000K
Luminous beam angle
60°
Colour rendering index Ra
81
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04865
Brand
Multipack pcs
100
Catalogue page
234
EAN code
5901477348655
