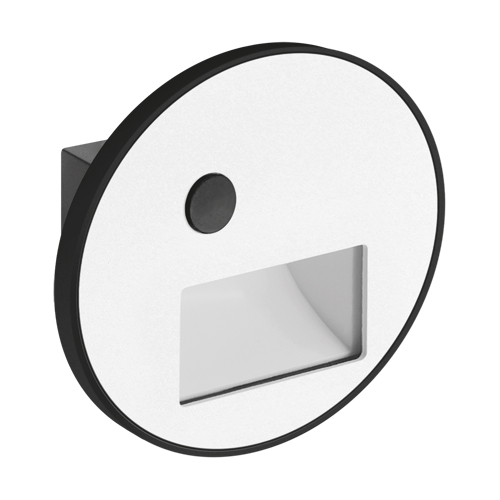

WEKTOR LED C PIR
1,2W WHITE CCT
Decorative LED fitting with a motion sensor
• Product information
Colour
White/black
Materials
Steel, polycarbonate PC, PMMA
Dimensions
height
80 mm
width
80 mm
Depth
40 mm
Mounting hole
⌀ 60 mm
Remarks
  • three-stage color temperature control (WW, NW, CW)
  • with PIR movement sensor
  • movement sensor operating angle 120°
  • works with ambient light < 30 lx
  • motion detection range < 2 m (< 24°C)
  • lighting time 30 s

The WEKTOR LED C PIR 1.2W WHITE CCT is a modern decorative LED luminaire with a motion sensor that combines elegant white design with practical functionality. Its compact form makes it perfect for spaces where comfort, energy savings, and aesthetically pleasing lighting are key.

This model features three-level light color adjustment , allowing you to tailor the lighting to your needs and the character of your interior. You can choose from warm white, neutral white, or cool white light , and the integrated SMD LED source ensures uniform illumination and long life. Additionally, a built-in PIR sensor enhances user comfort by automatically turning on the light when motion is detected.

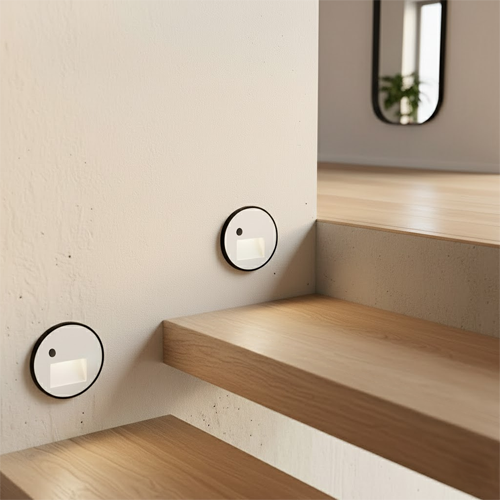

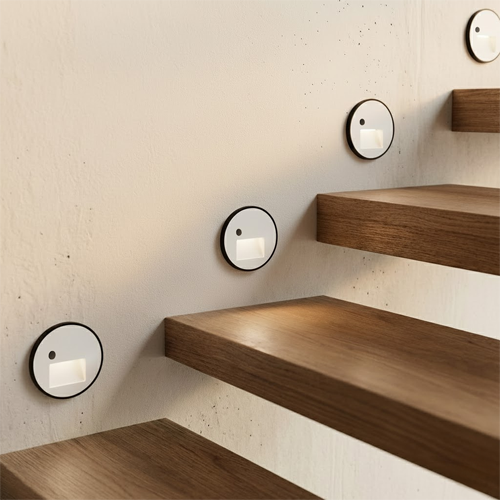

A great choice for hallways, stairs, walk-in closets, built-in furniture, and other areas requiring discreet yet effective lighting. Designed for easy installation and reliable operation, the WEKTOR LED C PIR offers a modern solution for everyday use.

  • Power: 1.2 W
  • Power supply: 230V 50Hz
  • Luminaire luminous flux: 50 lm
  • Light color: 3000K / 4000K / 6000K
  • PIR motion sensor: included
  • Sensor operating angle: 120°
  • Motion detection range: up to 2 m
  • Lighting time: 30 s
  • Degree of protection: IP20
  • Product color: white

Choose WEKTOR LED C PIR 1.2W WHITE CCT and choose a combination of style, functionality and energy efficiency in one compact solution.

• Product parameters
Power supply
230V 50Hz
Power
1,2 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
50 lm
Light source luminous flux
58 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP20
Light colour:
warm white/neutral white/cold white
Colour temperature
3000K/4000K/6000K
Luminous beam angle
60°
Colour rendering index Ra
81
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04863
Brand
Multipack pcs
100
Catalogue page
234
EAN code
5901477348631
