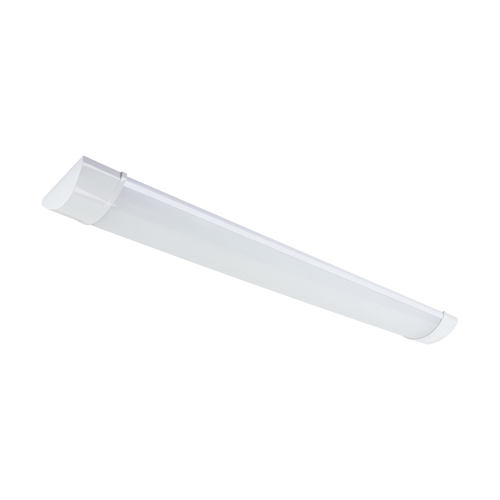

LOTOS LED
10/15/20W WHITE CCT
Linear lighting fitting LED
• Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
23 mm
width
600 mm
Depth
75 mm
Remarks

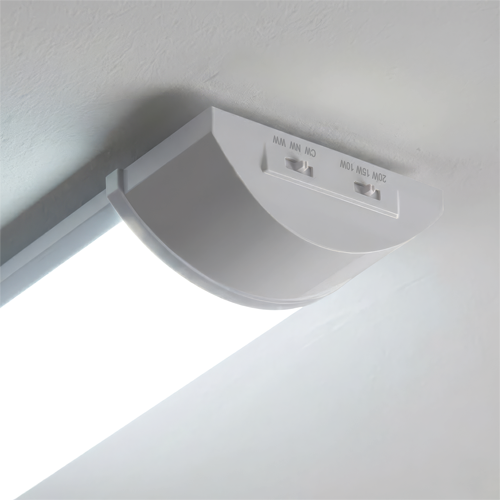

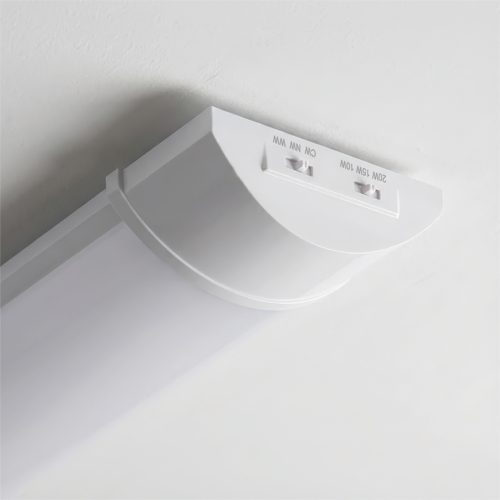

  • three-stage color temperature control (WW, NW, CW)
  • power regulation

LOTOS LED 10/15/20W WHITE CCT is a modern linear LED fixture that combines elegant white design with functionality tailored to everyday needs. With three-stage power adjustment, you can easily adjust the brightness to suit a specific room and task, achieving comfortable lighting both at home and in commercial spaces.

This model offers a choice of three light colors: warm white , neutral white , or cool white , allowing you to create the right mood and conditions for work, relaxation, or daily activities. Its robust polycarbonate construction, wide 140° beam angle, and high CRI 86 color rendering index ensure comfortable and enjoyable use every day.

This practical and durable solution was designed with reliability and ease of installation in mind. The integrated SMD LED light source guarantees long life and energy-efficient operation, while its high luminous efficacy makes the fixture ideal for a variety of interiors.

  • Power adjustment: 10 / 15 / 20 W
  • Three light colors: 2800K / 4200K / 6500K
  • Luminaire luminous flux: 1210 / 1640 / 1970 lm
  • Built-in light source: SMD LED included
  • Light source lifetime: 35,000 h
  • Product color: white
  • Degree of protection: IP20
  • Protection class: II
  • Power supply: 230 V 50 Hz

LOTOS LED WHITE CCT is an excellent choice for those seeking an aesthetic, energy-efficient, and versatile lighting fixture. Choose comfort, a modern look, and lighting tailored to your needs.

• Product parameters
Power supply
230V 50Hz
Power
10/15/20 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
1210 / 1640 / 1970 lm
Light source luminous flux
2720 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP20
Light colour:
warm white/neutral white/cold white
Colour temperature
2800K/4200K/6500K
Luminous beam angle
140°
Colour rendering index Ra
86
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04533
Brand
Multipack pcs
30
Catalogue page
329
EAN code
5901477345333
