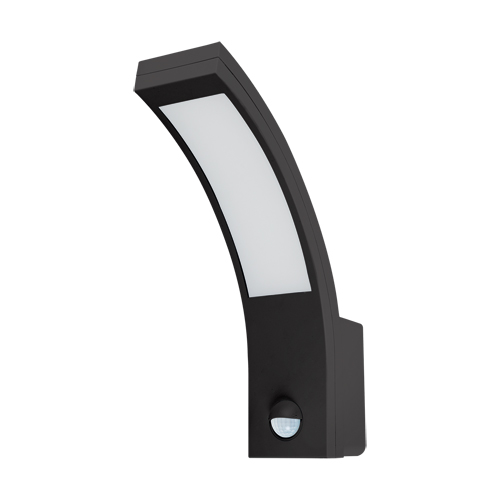

SONET LED S
10W BLACK NW
Hermetic LED fixture with a motion sensor
• Product information
Colour
Black
Materials
Polycarbonate PC
Dimensions
height
257 mm
width
65 mm
Depth
185 mm
Remarks
  • with PIR movement sensor
  • possibility of setting ambient lighting intensity (3-2000 lx) at which the device operates
  • movement sensor operating angle 140°
  • motion detection range < 5 m (< 24°C)
  • lighting time regulation between 10 s and 5 min

The SONET LED S 10W BLACK NW is a modern, hermetic LED fixture with a motion sensor that combines elegant black design with high functionality. Its neutral white 4000K light provides comfortable and natural lighting, ideal for spaces requiring good visibility. Thanks to its robust PC polycarbonate construction, the fixture is suitable for both home and commercial spaces.

This model offers 10W of power and a luminous flux of 560 lumens , providing efficient and energy-saving lighting. A built-in PIR sensor enhances user convenience and helps reduce energy consumption, as the light automatically turns on when motion is detected. The fixture boasts an IP54 rating , making it dust- and splash-resistant, making it a good choice for a variety of indoor and outdoor applications, both under cover.

SONET LED S was designed with reliability and ease of installation in mind. It's a practical solution for those seeking durable, aesthetically pleasing, and modern lighting with additional automatic control functions. The high light source lifespan of up to 35,000 hours and a wide 140° beam angle guarantee comfortable use for a long time.

  • Product type: hermetic LED luminaire with motion sensor
  • Power: 10 W
  • Light color: neutral white
  • Color temperature: 4000 K
  • Luminous flux of the fixture: 560 lm
  • Protection class: IP54
  • Product color: black
  • Material: PC polycarbonate
  • PIR motion sensor: included
  • Sensor operating angle: 140°
  • Lighting time adjustment: from 10 s to 5 min
  • Ambient intensity range: 3-2000 lx
• Product parameters
Power supply
230V 50Hz
Power
10 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
560 lm
Light source luminous flux
1120 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP54
Light colour:
neutral white
Colour temperature
4000 K
Luminous beam angle
140°
Colour rendering index Ra
82
For indoor or outdoor use
Electric shock protection class
2
Declaration of conformity
Product code
04461
Brand
Multipack pcs
20
Catalogue page
372
EAN code
5901477344619
