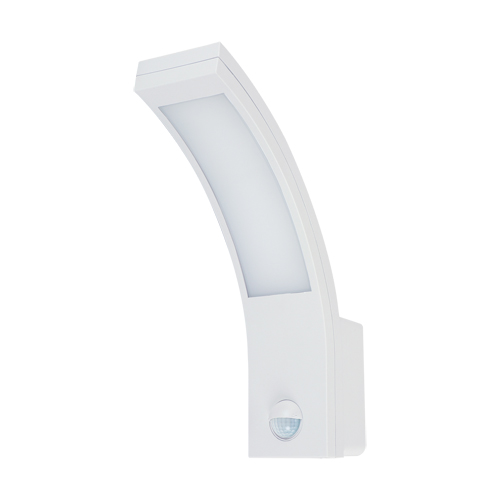

SONET LED S
10W WHITE NW
Hermetic LED fixture with a motion sensor
• Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
257 mm
width
65 mm
Depth
185 mm
Remarks
  • with PIR movement sensor
  • possibility of setting ambient lighting intensity (3-2000 lx) at which the device operates
  • movement sensor operating angle 140°
  • motion detection range < 5 m (< 24°C)
  • lighting time regulation between 10 s and 5 min

The SONET LED S 10W WHITE NW is a modern, hermetic LED luminaire with a PIR motion sensor , designed for convenient, energy-efficient, and safe lighting for both indoor and outdoor spaces. Its sleek, aesthetically pleasing white housing blends seamlessly into a variety of interiors, while its neutral 4000K light color provides comfortable, natural lighting for everyday use.

With a power output of 10W and a luminous flux of 610 lm, this model is perfect for locations where reliability and energy savings are important. A built-in PIR motion sensor enhances functionality and safety by automatically turning on the light when motion is detected. The fixture is made of durable PC polycarbonate , and its IP54 rating helps protect it from dust and splashes.

This practical solution for many applications offers a long-lasting light source of up to 35,000 hours and a wide 140° beam angle. The product does not require replacing the light source, further enhancing user comfort. Adjustable sensor parameters allow the luminaire to be adapted to the surroundings and user needs.

  • Product type: hermetic LED luminaire with motion sensor
  • Power: 10 W
  • Light color: neutral white
  • Color temperature: 4000 K
  • Luminaire luminous flux: 610 lm
  • Protection class: IP54
  • Sensor operating angle: 140°
  • Motion detection range: less than 5 m
  • Lighting time adjustment: from 10 s to 5 min
  • Ambient light intensity level adjustment: 3-2000 lx
  • Material: PC polycarbonate

The SONET LED S 10W WHITE NW combines functionality, durability, and elegant design. If you're looking for a reliable LED fixture with automatic light control, this model is an excellent choice for everyday use.

• Product parameters
Power supply
230V 50Hz
Power
10 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
610 lm
Light source luminous flux
1120 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP54
Light colour:
neutral white
Colour temperature
4000 K
Luminous beam angle
140°
Colour rendering index Ra
82
For indoor or outdoor use
Electric shock protection class
2
Declaration of conformity
Product code
04460
Brand
Multipack pcs
20
Catalogue page
372
EAN code
5901477344602
