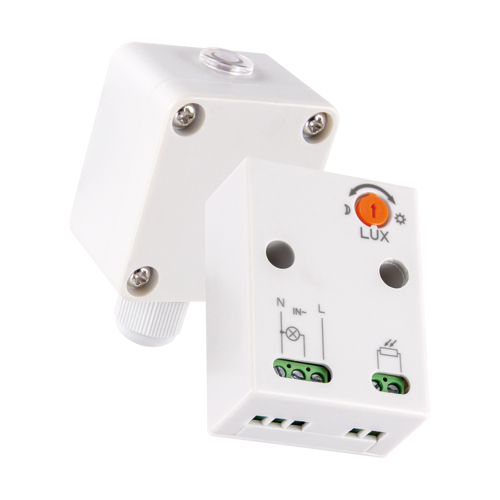

ELF
15A
Twilight sensor
• Product information
Colour
Grey
Materials
Polycarbonate PC
Dimensions
height
64 mm
width
49 mm
Depth
29 mm
Remarks
twilight sensor with regulation - works with ambient light < 2-100 lx

The ELF 15A is a powerful twilight sensor designed for automatic control of outdoor and indoor lighting. The device automatically turns lights on at dusk and off at dawn, increasing user comfort and helping to reduce energy consumption. Its high load capacity makes it ideal for controlling lighting in facades, gardens, parking lots, driveways, passageways, and other installations requiring automatic operation.

The model is equipped with an adjustable activation threshold, allowing you to set the light intensity level from 2 to 100 lux. This allows you to precisely adjust the lighting activation time to ambient conditions and the user's individual needs. A maximum load of 3450 W makes the sensor compatible with complex lighting systems. The IP65 rating for outdoor installation ensures high resistance to dust and water, making the device suitable for use in demanding weather conditions.

The durable PC polycarbonate housing is resistant to mechanical damage and external factors. The ELF 15A is a practical solution for lighting automation in residential, industrial, and commercial buildings, ensuring reliable operation and convenient everyday use.

Technical data:

  • Product type: twilight sensor
  • Power supply: 230 V AC, 50 Hz
  • Maximum load: 3450 W (15 A)
  • Adjustable activation threshold: 2-100 lx
  • Protection class: IP65/20
  • Protection class: II
  • Material: polycarbonate (PC)
  • Application: for indoor and outdoor use
• Product parameters
Power supply
230V 50Hz
Power
max 3450 W
Degree of protection provided against intrusion dust, accidental contact and water
IP65/20
For indoor or outdoor use
Electric shock protection class
2
Declaration of conformity
Product code
03870
Brand
Multipack pcs
50
Catalogue page
433
EAN code
5901477338700
