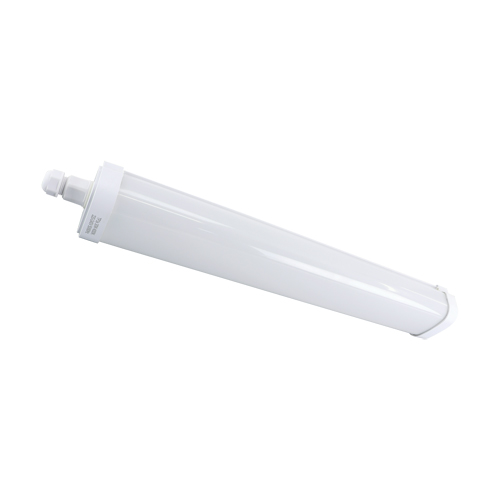

LAGAN LED
30W WHITE NW
Dustproof lighting fitting LED
• Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
58 mm
width
600 mm
Depth
83 mm
Remarks
possibility of pass-through connection up to 300 W

The LAGAN LED 30W WHITE NW is a dust-proof LED luminaire designed for spaces where reliable and efficient lighting is essential. With a power output of 30W and a high luminous flux of 3350 lm , it provides bright, comfortable light with a neutral color temperature of 4000K , ideal for technical and utility spaces, garages, hallways, and back rooms.

The robust PC polycarbonate construction, high IP65 protection rating, and IK08 mechanical resistance make the luminaire ideal for demanding environments. The model operates on a 230V 50Hz standard, and the SMD LED source boasts a durability of up to 35,000 hours , ensuring long and trouble-free operation.

This practical solution is perfect for users who want a combination of functionality, cost-effectiveness, and aesthetics. The LAGAN LED 30W WHITE NW also offers loop-through capability up to 300W , which increases installation flexibility and allows for the creation of coherent, complex lighting installations.

  • Product type: dustproof LED luminaire
  • Power: 30 W
  • Light color: neutral white
  • Luminaire luminous flux: 3350 lm
  • Color temperature: 4000 K
  • Protection class: IP65
  • Mechanical resistance: IK08
  • Light source durability: 35,000 h
  • Pass-through capability: up to 300 W
  • Housing color: white

Choose LAGAN LED 30W WHITE NW and choose durable, energy-saving and efficient LED lighting that perfectly fits the needs of modern utility spaces.

• Product parameters
Power supply
230V 50Hz
Power
30 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
3350 lm
Light source luminous flux
4450 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP65
Degree of protection against mechanical impacts
IK08
Light colour:
neutral white
Colour temperature
4000 K
Luminous beam angle
160°
Colour rendering index Ra
82
For indoor or outdoor use
Electric shock protection class
2
Declaration of conformity
Product code
04905
Brand
Multipack pcs
20
Catalogue page
343
EAN code
5901477349058
