ARENA LED
18W CCT
Magnetic LED module
• Product information
Colour
White
Materials
Polycarbonate PC, aluminium
Dimensions
height
32 mm
width
191 mm
Depth
191 mm
Remarks
  • three-stage color temperature control (WW, NW, CW)
  • fixing by magnet

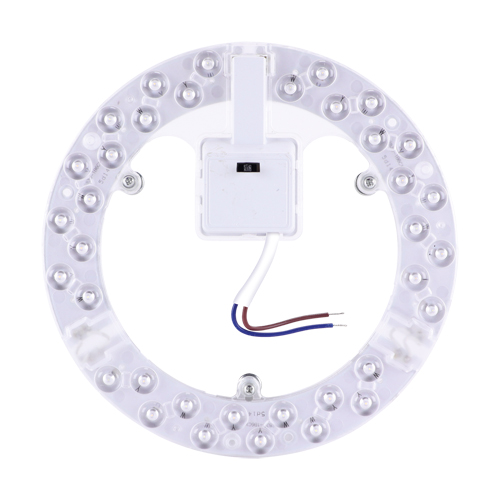

ARENA LED 18W CCT is a modern magnetic LED module.

It is designed to replace integrated LED light sources in damaged lighting fixtures. This allows for the restoration of functionality, including LED ceiling lights, regardless of their original light color. ARENA LED features three-level color temperature control (warm white, neutral white, cool white), allowing you to tailor the lighting to your needs. An additional advantage is the convenient magnetic mount , which significantly simplifies installation on a metal base .

The luminous flux of 2150 lm provides efficient and pleasant lighting, while the wide beam angle of 160° guarantees good illumination of the space.

  • Power: 18 W
  • Light color: warm white / neutral white / cool white
  • Color temperature: 2900K / 4100K / 6400K
  • Luminous flux: 2150 lm
  • Beam angle: 160°
  • Light source durability: 35,000 h
  • Degree of protection: IP20
  • Power supply: 230V 50Hz
  • Product color: white
  • Mounting: magnetic mounting



• Product parameters
Power supply
230V 50Hz
Power
18 W
Do not use with a mains dimmer
Light source luminous flux
2150 lm
Shelf life L70B50 in h
35 000 h
Degree of protection provided against intrusion dust, accidental contact and water
IP20
Light colour:
warm white/neutral white/cold white
Colour temperature
2900K/4100K/6400K
Luminous beam angle
160°
Colour rendering index Ra
81
Electric shock protection class
2
Declaration of conformity
Product code
04891
Brand
Energy class
Multipack pcs
40
Catalogue page
439
EAN code
5901477348914
