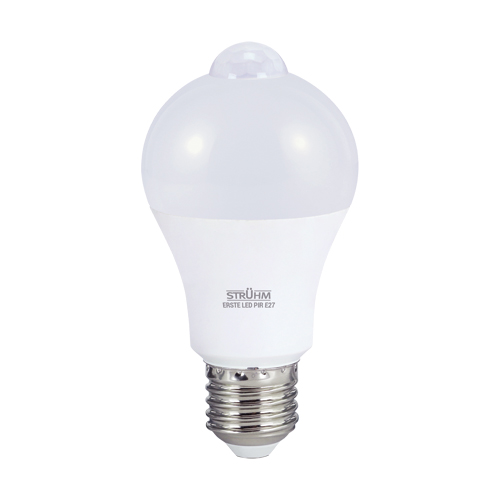

ERSTE LED
PIR E27 7W NW
SMD LED lamp with a motion sensor
• Product information
Colour
White
Materials
Polycarbonate PC, aluminium, PA, polypropylene PP
Dimensions
height
119 mm
width
60 mm
Depth
60 mm
Remarks
  • with PIR movement sensor
  • works with ambient light < 50 lx
  • movement sensor operating angle 120°/360°
  • motion detection range < 5 m (< 24°C)
  • lighting time 60 s

The ERSTE LED PIR E27 7W NW is a functional LED light source equipped with an integrated PIR motion sensor , designed for fixtures with the popular E27 base . SMD LED technology ensures energy-efficient and stable operation, while the built-in sensor allows for automatic activation of lighting upon motion detection . This solution is particularly effective in areas where convenience and limited light exposure are key, such as hallways, stairwells, entrances, utility rooms, and circulation areas.

The neutral 4000K light provides natural and comfortable lighting, suitable for both residential and commercial spaces. A luminous flux of 810 lumens and a wide 160° beam angle provide even ambient lighting. A color rendering index of CRI 81 preserves the natural appearance of illuminated surfaces and objects.

The PC polycarbonate and aluminum construction ensures durability and supports efficient heat dissipation. The PIR sensor responds to motion within a 120°/360° range, with a detection range of up to 5 meters , and the light lasts for 60 seconds once activated. The light source also features ambient light sensitivity, activating at ambient light levels below 50 lux. A 35,000-hour lifespan ensures long-lasting and comfortable use.

Technical data:

  • Base: E27
  • Power: 7 W
  • Power supply voltage: 230 V AC, 50 Hz
  • Luminous flux: 810 lm
  • Light color: neutral white
  • Color temperature: 4000 K
  • Light distribution angle: 160°
  • Color rendering index (CRI): 81
  • Durability: 35,000 h
  • Motion sensor: PIR
  • Sensor operating angle: 120°/360°
  • Motion detection range: up to 5 m
  • Lighting time after motion detection: 60 s
  • Energy class: E
• Product parameters
Power supply
230V 50Hz
Power
6.95 W
Lampholder type
E27
Do not use with a mains dimmer
Light source luminous flux
810 lm
Shelf life L70B50 in h
35 000 h
Light colour:
neutral white
Colour temperature
4000 K
Luminous beam angle
160°
Colour rendering index Ra
81
Declaration of conformity
Product code
04767
Brand
Energy class
Multipack pcs
100
Catalogue page
444
EAN code
5901477347672
