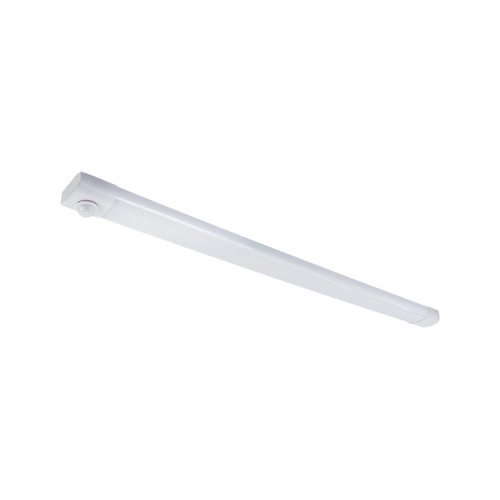

EMIL LED PIR
18W NW
LED linear lighting fixture with motion sensor
• Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
26 mm
width
600 mm
Depth
57 mm
Remarks
  • with PIR movement sensor
  • works with ambient light < 50 lx
  • movement sensor operating angle 140°
  • motion detection range < 4 m (< 24°C)
  • lighting time 60 s

The EMIL LED PIR 18W NW is a modern linear LED luminaire with a motion sensor that combines high functionality with energy efficiency and a simple, universal design. Its white housing blends seamlessly with a variety of interior designs, while the neutral white 4000K light provides comfortable, natural lighting for everyday use.

This model is equipped with an efficient SMD LED light source, generating a luminous flux of 1920 lumens at 18 W. This makes it ideal for spaces where good lighting and energy savings are key. A 160° beam angle allows for even light distribution, and the light source's lifespan of up to 35,000 hours translates into long, trouble-free use.

The built-in PIR motion sensor increases convenience and safety by automatically turning on light when needed. This is a practical solution for areas such as hallways, passageways, entrances, and utility rooms. The luminaire operates in ambient light below 50 lux , has a 140° sensor angle , a detection range of up to 4 m , and an operating time of approximately 60 seconds .

  • Product type: LED linear luminaire with motion sensor
  • Power: 18 W
  • Light color: neutral white
  • Color temperature: 4000 K
  • Luminaire luminous flux: 1920 lm
  • PIR motion sensor: included
  • Degree of protection: IP20
  • Product color: white
  • Material: plastic
  • Power supply: 230 V 50 Hz

The EMIL LED PIR 18W NW is a practical choice for those looking for modern LED lighting with automatic start-up, good lighting parameters, and an aesthetically pleasing design. It's a solution that combines ease of use, durability, and an attractive lighting effect in one product.

• Product parameters
Power supply
230V 50Hz
Power
18 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
1920 lm
Light source luminous flux
2410 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP20
Light colour:
neutral white
Colour temperature
4000 K
Luminous beam angle
160°
Colour rendering index Ra
81
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
04749
Brand
Multipack pcs
25
Catalogue page
325
EAN code
5901477347498
