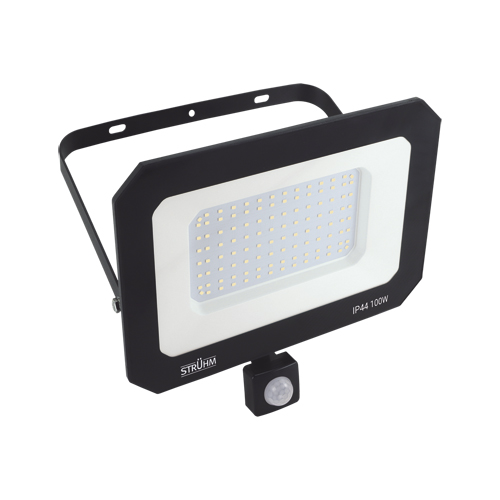

ASTON LED S
100W BLACK NW
LED floodlight with a motion sensor
• Product information
Colour
Black
Materials
Aluminium alloy cast, glass, steel, ABS
Dimensions
height
242 mm
width
265 mm
Depth
53 mm
Remarks
  • with PIR movement sensor
  • possibility of setting ambient lighting intensity (20-2000 lx) at which the device operates
  • movement sensor operating angle 30°/120° (V/H)
  • motion detection range < 8 m (< 24°C)
  • lighting time regulation between 5 s and 8 min

The ASTON LED S 100W BLACK NW is a modern LED floodlight with a motion sensor that combines high efficiency, durability, and an elegant black design. With a power output of 100W and a luminous flux of 9900 lm, it is perfect for illuminating driveways, facades, entrances, parking lots, home areas, and commercial buildings.

The device emits a neutral white light of 4200K , ensuring comfortable and clear visibility after dark. The robust die-cast aluminum alloy and PC polycarbonate construction guarantees durability for everyday use, while the IP44 rating helps protect the fixture from external factors. The SMD LED source boasts a long lifespan of up to 35,000 hours .

Thanks to the included PIR motion sensor, the floodlight offers convenience and energy savings by automatically turning on the light when needed. You can tailor its operation to your needs by setting the ambient light intensity, lighting duration, and motion detection parameters. It's a practical and aesthetically pleasing solution for those looking for reliable outdoor lighting.

  • Product type: LED floodlight with motion sensor
  • Power: 100 W
  • Light color: neutral white
  • Luminaire luminous flux: 9900 lm
  • Color temperature: 4200 K
  • Protection class: IP44
  • PIR motion sensor: included
  • Lighting time adjustment: from 5 s to 8 min
  • Motion detection range: up to 8 m

The ASTON LED S 100W BLACK NW is a great choice for those who expect powerful light, modern design, and functionality all in one. Choose proven lighting that will improve the safety and comfort of the space around your home or business.

• Product parameters
Power supply
230V 50Hz
Power
100 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
9900 lm
Light source luminous flux
10760 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
yes
Degree of protection provided against intrusion dust, accidental contact and water
IP44
Light colour:
neutral white
Colour temperature
4200 K
Luminous beam angle
115°
Colour rendering index Ra
83
For indoor or outdoor use
Electric shock protection class
1
Declaration of conformity
Product code
04583
Brand
Multipack pcs
5
Catalogue page
405
EAN code
5901477345838
