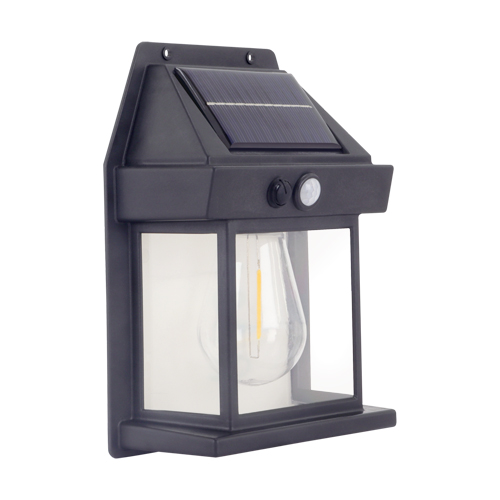

RABI LED PIR
1W WW
Solar LED lamp with a motion sensor
• Product information
Colour
Black
Materials
ABS, PMMA
Dimensions
height
170 mm
width
120 mm
Depth
63 mm
Remarks
  • with rechargeable battery
  • with PIR movement sensor
  • works with ambient light < 50 lx
  • movement sensor operating angle 120°
  • motion detection range < 5 m (< 24°C)
  • lighting time 20 s
Battery type
18650 3,7 V 800 mAh (Li-ion LMO)

The RABI LED PIR 1W WW is a solar wall luminaire with a built-in PIR motion sensor, designed to illuminate building entrances, facades, terraces, balconies, and walkways around the house. Solar-powered, it requires no electrical wiring, making installation easy and allowing for quick lighting in any desired location. The built-in battery charges during the day, and the luminaire automatically turns on when motion is detected after dark.

The 1W LED light source emits warm white light with a color temperature of 3000K and a luminous flux of 25 lumens. A 140 ° beam angle ensures even illumination of the immediate surroundings, and the IP44 rating allows for outdoor use. The PIR sensor detects motion within a 120° range from up to 5m away, activating the lighting for approximately 20 seconds, increasing user convenience and enabling efficient use of the battery's energy.

The housing, made of ABS and PC polycarbonate, is resistant to weather conditions and mechanical damage. Its compact design and the ability to turn the luminaire off make the RABI LED PIR 1 W WW a practical solution for decorative and orientational lighting of outdoor spaces.

Technical data:

  • Power: 1 W
  • Light source: integrated LED
  • Luminous flux: 25 lm
  • Light color: warm white
  • Color temperature: 3000 K
  • Beam angle: 140°
  • Color rendering index CRI: 70
  • Protection class: IP44
  • Motion sensor: PIR
  • Sensor operating angle: 120°
  • Motion detection range: up to 5 m
  • Lighting time after motion detection: approx. 20 s
  • Action threshold: <50 lx
• Product parameters
Power supply
DC 3,7 V 800 mAh Li-ion
Power
1 W
Dedicated light source
LED, in set
Non-replaceable light source
Luminaire luminous flux
25 lm
Shelf life L70B50 in h
35 000 h
on/off switch
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP44
Light colour:
warm white
Colour temperature
3000 K
Luminous beam angle
140°
Colour rendering index Ra
70
For indoor or outdoor use
Electric shock protection class
3
Declaration of conformity
Product code
04509
Brand
Multipack pcs
40
Catalogue page
415
EAN code
5901477345098
