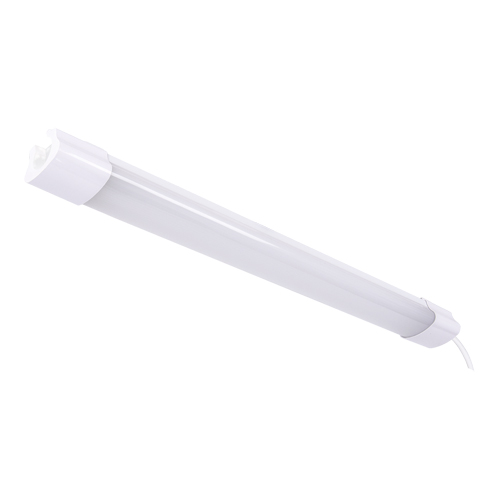

FRODO LED
18W CW
Dustproof lighting fitting LED
• Product information
Colour
White
Materials
Polycarbonate PC, ABS
Dimensions
height
32 mm
width
610 mm
Depth
47 mm

The FRODO LED 18W CW is a modern , dust-proof LED luminaire that combines high efficiency, durability, and aesthetic appeal. With an 18W power output and a luminous flux of 1890 lm , it provides bright and even illumination, ideal for technical, utility, and commercial applications. The cool white, yet vibrant 6500K color promotes clear detail and increases work comfort.

This model is made of durable PC polycarbonate , ensuring resistance to everyday use and a long service life. Thanks to its IP65 tightness rating, the fixture is perfectly protected against dust and water jets, while its high IK08 mechanical resistance increases its reliability in demanding conditions. The included SMD LED light source does not require replacement and has a service life of up to 35,000 hours .

The FRODO LED 18W CW is a practical and economical solution for spaces where durability and trouble-free operation are essential. A wide 140° beam angle provides good illumination of a larger area, while a high color rendering index of 83 allows for natural color reproduction. The fixture operates on a 230V 50Hz power supply and is rated Class II , making it a safe choice for many applications.

  • Product type: dustproof LED luminaire
  • Power: 18 W
  • Light color: cold white
  • Color temperature: 6500 K
  • Luminaire luminous flux: 1890 lm
  • Protection class: IP65
  • Mechanical resistance: IK08
  • Material: PC polycarbonate
  • Light source durability: 35,000 h
  • Wide beam angle: 140°

Choose FRODO LED 18W CW if you are looking for a durable, energy-saving and reliable LED luminaire that will work wherever strong and reliable lighting is needed for a long time.

• Product parameters
Power supply
230V 50Hz
Power
18 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
1890 lm
Light source luminous flux
2230 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP65
Degree of protection against mechanical impacts
IK08
Light colour:
cold white
Colour temperature
6500 K
Luminous beam angle
140°
Colour rendering index Ra
83
For indoor or outdoor use
Electric shock protection class
2
Declaration of conformity
Product code
03916
Brand
Multipack pcs
30
Catalogue page
341
EAN code
5901477339165
