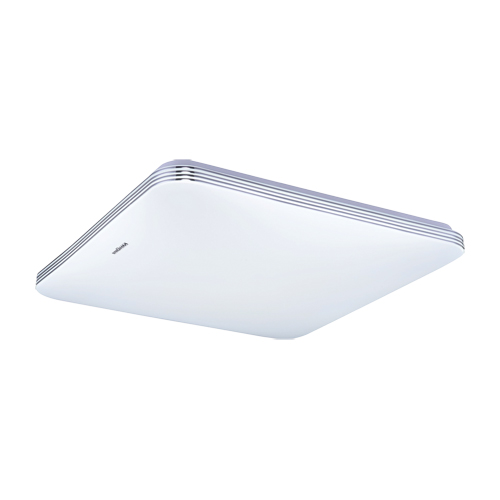

ADIS LED D SLIM MVS
28W NW
Ceiling LED light fitting with a motion sensor
Product code
03755
EAN code
5901477337550
Brand
Multipack pcs
10
Catalogue page
69
Product information
Colour
White
Materials
Steel sheet, plastic
Dimensions
height
71 mm
width
330 mm
Depth
330 mm
Remarks
  • microwave motion sensor included
  • switching on with ambient light < 10 lx, 20 lx, 75 lx, 200 lx, OFF
  • movement sensor operating angle 150°/360°
  • motion detection range < 1,7 m, 2,5 m, 3,3 m, 4 m
  • switching off after < 5 s, 30 s, 1 min, 3 min, 5 min, 10 min, 20 min, 30 min
  • operating frequency 5,8 GHz ± 75 MHz
  • transmitter power 1,2 mW MAX
Downloadable materials
Product information sheet
EU declaration of conformity
Product manual
Description of symbols and markings
Power supply
230V 50Hz
Power
28 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
1900 lm
Light source luminous flux
3560 lm
Shelf life L70B50 in h
35 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP44
Light colour:
neutral white
Colour temperature
4200 K
Luminous beam angle
160°
Colour rendering index Ra
82
For indoor use
Electric shock protection class
1
Declaration of conformity
