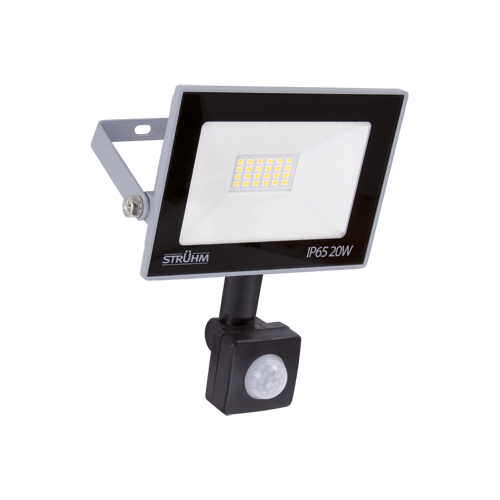

KROMA LED S
20W GREY CW
SMD LED floodlight with a motion sensor
Product code
03705
EAN code
5901477337055
Brand
Multipack pcs
30
Catalogue page
317
Product information
Colour
Grey
Materials
Aluminium alloy cast, glass, plastic
Dimensions
height
159 mm
width
144 mm
Depth
54 mm
Remarks
  • with PIR movement sensor
  • possibility of setting ambient lighting intensity (20-2000 lx) at which the device operates
  • movement sensor operating angle 30°/120° (V/H)
  • motion detection range < 8 m (< 24°C)
  • lighting time regulation between 5 s and 8 min
Downloadable materials
Power supply
230V 50Hz
Power
20 W
Dedicated light source
N/A
Non-replaceable light source
Do not use with a mains dimmer
Light source luminous flux
1690 lm
Shelf life L70B50 in h
25 000 h
Product offer the possibility of adjusting the illumination direction
yes
Degree of protection provided against intrusion, dust, accidental contact, and water
IP65
Light colour:
cold white
Colour temperature
6200 K
Luminous beam angle
115°
Colour rendering index Ra
82
For indoor or outdoor use
Electric shock protection class
1
Declaration of conformity
