MANUEL LED
10W WHITE CCT

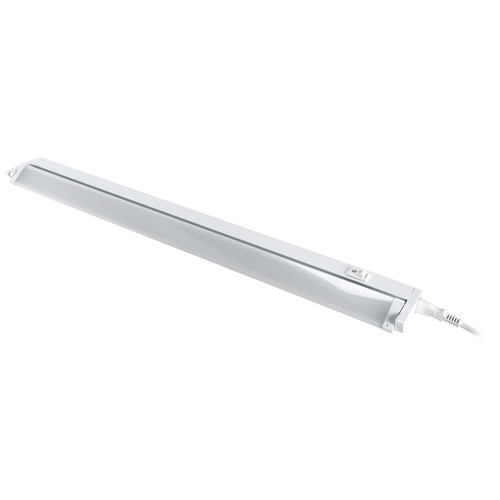

Under-cupboard linear LED fitting
• Product information
Colour
White
Materials
Polycarbonate PC
Dimensions
height
25 mm
width
557 mm
Depth
64 mm
Remarks
  • three-stage color temperature control (WW, NW, CW)
  • possibility of through-feeding of up to 10 fittings - connector is included

The MANUEL LED 10W WHITE CCT is a modern, under-cabinet linear LED fixture that combines elegant white design with high functionality. Its compact form makes it perfect for kitchens, closets, workshops, or built-in cabinets, providing comfortable and even lighting where comfort and aesthetics are paramount.

The fixture offers three-level light color adjustment , allowing you to tailor the lighting to your needs and mood. You can choose from warm white 3000K , neutral white 4100K , or cool white 6500K . This practical solution allows you to create a pleasant atmosphere, improve visibility while working, and perfectly match the light to various home applications.

The MANUEL LED 10W WHITE CCT model also stands out for its high efficiency and ease of use. The built-in SMD LED light source provides a luminous flux of 1140 lm and a lifespan of up to 35,000 hours . Additionally, the fixture is equipped with a switch , adjustable beam direction , and the option of looping power to power up to 10 fixtures , significantly increasing its versatility.

  • Power: 10 W
  • Product color: white
  • Light color: 3000K / 4100K / 6500K
  • Luminaire luminous flux: 1140 lm
  • Light beam angle: 120°
  • Degree of protection: IP20
  • Material: PC polycarbonate
  • Switch: yes
  • Light direction adjustment: yes

The MANUEL LED 10W WHITE CCT is the perfect choice for those looking for practical, energy-efficient, and aesthetically pleasing LED lighting . This robust fixture will look great in both modern interiors and everyday use, providing reliable light exactly where you need it.

• Product parameters
Power supply
230V 50Hz
Power
10 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
1140 lm
Light source luminous flux
1440 lm
Shelf life L70B50 in h
35 000 h
on/off switch
Product offer the possibility of adjusting the illumination direction
yes
Degree of protection provided against intrusion dust, accidental contact and water
IP20
Light colour:
warm white/neutral white/cold white
Colour temperature
3000K/4100K/6500K
Luminous beam angle
120°
Colour rendering index Ra
81
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
03561
Brand
Multipack pcs
20
Catalogue page
246
EAN code
5901477335617
