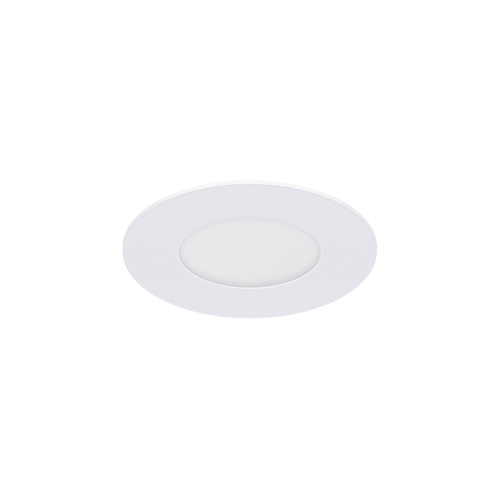

SLIM LED C
3W WHITE WW
Ceiling lighting point LED fitting
• Product information
Colour
White
Materials
Aluminium alloy cast, polycarbonate PC
Dimensions
height
25 mm
width
88 mm
Depth
88 mm
Mounting hole
⌀ 70 mm

The SLIM LED C 3W WHITE WW is a modern LED ceiling spotlight that combines elegant, minimalist design with high functionality. The white housing, made of die-cast aluminum alloy and plastic, blends seamlessly with a variety of interior designs, while the warm white light of 3200K creates a cozy and comfortable atmosphere.

This model is equipped with an integrated 3W SMD LED source, which provides a luminous flux of 140 lm . A wide 120° beam angle evenly illuminates the space, while a CRI of 80 supports natural color reproduction. With a light source lifespan of up to 25,000 hours, you can enjoy reliable operation for a long time.

The fixture is designed for a 230V 50Hz power supply and has an IP20 protection rating, making it ideal for indoor use. Installation in a 70mm diameter hole is quick and easy, and its Class II rating increases safety. This is a great option for those seeking subtle, energy-efficient, and aesthetically pleasing lighting for their home, office, or commercial space.

  • Product type: LED ceiling spotlight
  • Power: 3 W
  • Light color: warm white
  • Luminaire luminous flux: 140 lm
  • Color temperature: 3200 K
  • Beam angle: 120°
  • Light source lifetime: 25,000 h
  • Product color: white
• Product parameters
Power supply
230V 50Hz
Power
3 W
Dedicated light source
SMD LED, in set
Non-replaceable light source
Do not use with a mains dimmer
Luminaire luminous flux
140 lm
Light source luminous flux
290 lm
Shelf life L70B50 in h
25 000 h
Product offer the possibility of adjusting the illumination direction
no
Degree of protection provided against intrusion dust, accidental contact and water
IP20
Light colour:
warm white
Colour temperature
3200 K
Luminous beam angle
120°
Colour rendering index Ra
80
For indoor use
Electric shock protection class
2
Declaration of conformity
Product code
02808
Brand
Multipack pcs
40
Catalogue page
26
EAN code
5901477328084
